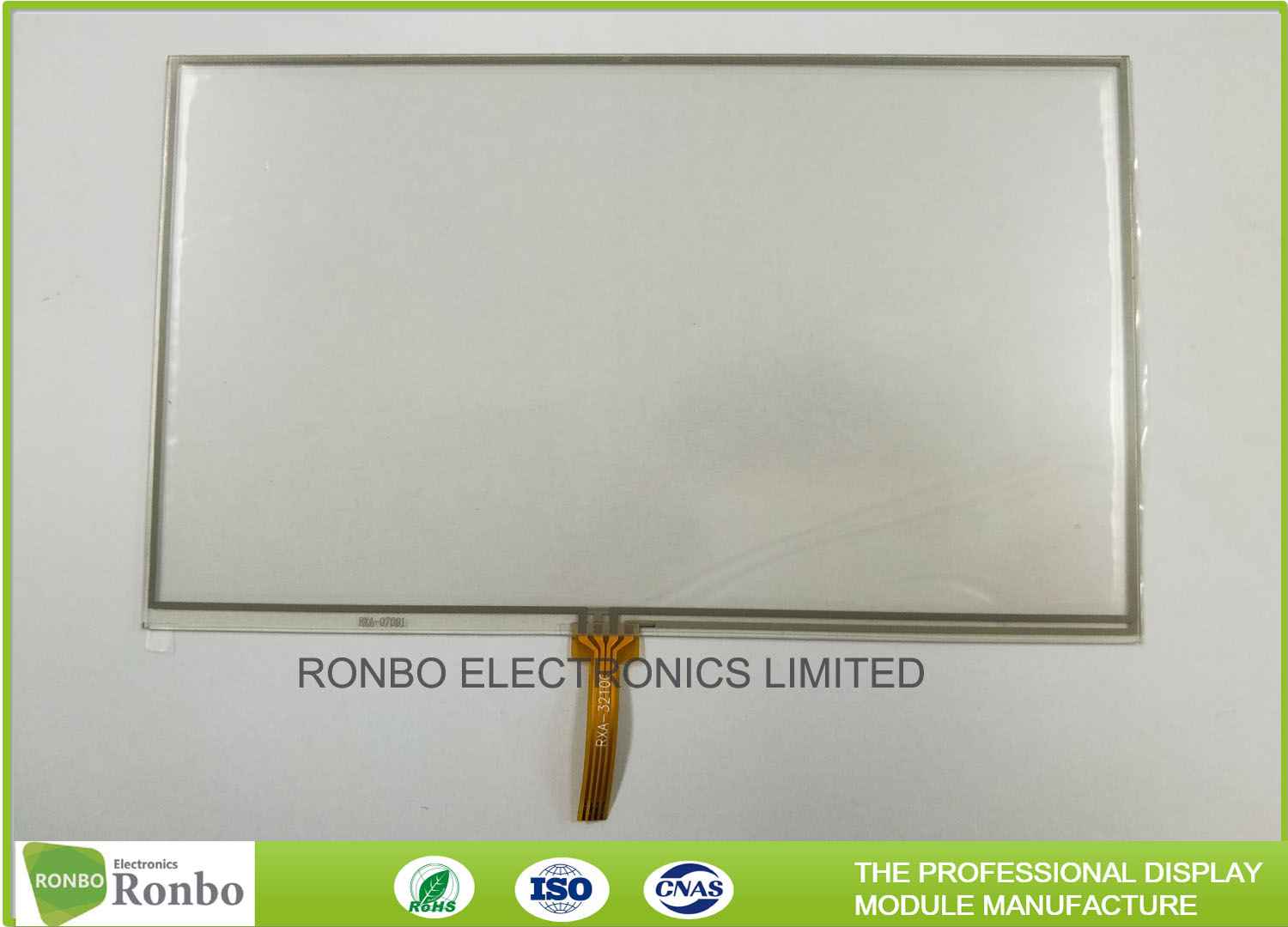

4 Wire RTP 7.0 Inch Resistive Touch Screen Panel For 7.0” 800*480 LCD Display


Model NO.:
RXA-070001-01
Screen Size:7.0 inch
Structure:ITO Film ITO Glass
Surface Treatment:Anti-Newton Ring, Matte, Hard coating

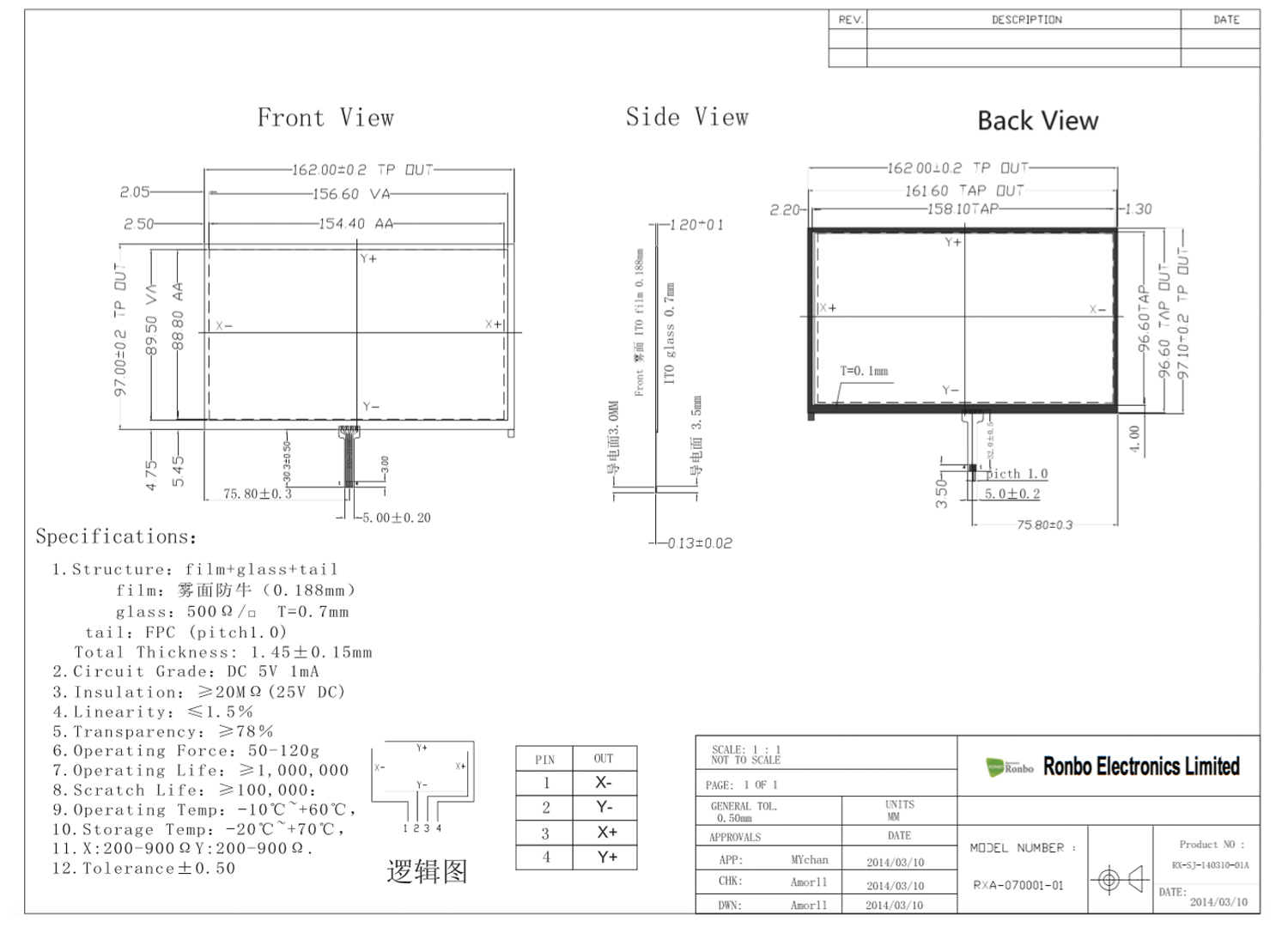

Outline Dimension(W*H):162.0x97.0mm
Viewing Area(W*H):156.0x89.5mm
Thickness:

ITO Film:0.188mm,ITO Glass:0.7mm,

Total Thickness:1.2mm

FPC Position:Left 75.8mm
FPC Length:30.3mm
Touch Action Force:50~120g
Circuit Grade:DC 5V 1mA
Insulation:≥20MΩ @ DC 25V
Linearity:≤1.5%
Transmittance:≥78%
Surface Hardness:3H
X.Y resistanceX:200Ω~900Ω, Y:200Ω~900Ω

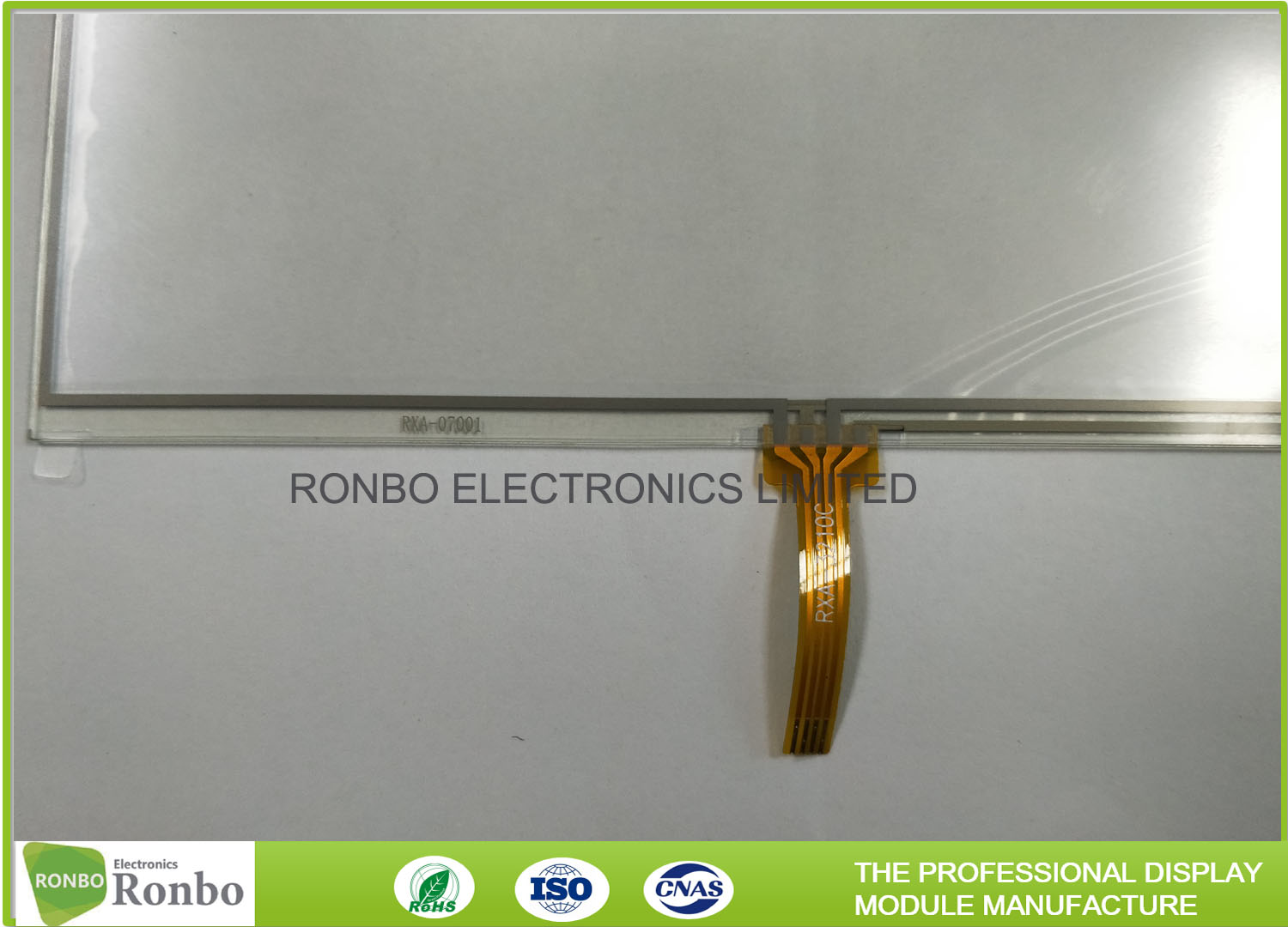

Connecting typeFPC 4-Wire Soldering Connector
Operating Force:≥1,000,000
Operating Temperature:-20 ~  70ºC
Storage Temperature-30 ~  80ºC



4-Wire resistive touch panel overview:

  • 4-Wire Resistive touch screen is an outstanding high quality product, suitable for low cost solution.

  • It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches.

  • 4 wire Resistive touchscreen featured contamination-resistant and waterproof, is designed for the harshest environment such as dust is prevalent or liquid spills, splashes and wash down.

  • It can be touched by finger, gloved finger, leather or stylus pen.

  Benefit:

   ■ Low cost

   ■ Finger, gloved hand and stylus activation

   ■ High accuracy and sensitivity

   ■ High durability and reliability

   ■ Contaminant proof and liquid resistance


Product Specification:



 Customized Resistive Touch Screen:

  • Our resistive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module.

  • we are also capable of doing the customized shape needed to suit for customer's mechanical design.

  • With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.



Packaging & Shipping & Delivery
  Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray   carton,

For bigger sizes we use foam slot   carton.

we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

  For large quantity orders: we ship by buyer's cargo agent in China,

  we can also ship by air or sea transportation by our cargo agent.



  Delivery Details:

  Ready-made Sample: within 1 week

  Custom Sample: 1~2 weeks

  Mass production: 3-4 weeks





Product Application:

Telecommunication DevicesTelephone, interphone, watch, tablet PC, radio, etc
Consumer ProductsCamera, DVD player, toy, Cell Phone, game player, etc
Technical EquipmentElevator controller, Industrial machine, etc
Office AutomationPrinter, scanner, attendance machine, fax machine, etc
Home AppliancesAir-condition display, refrigerator, electric cooker, video doorbell, etc
AutomobileGPS, video player, speedometer, audio broadcast, etc
IT ProductsCamera, handheld digital video, projector, media play, tablet PC, etc
Medical EquipmentUltrasound machine, therapeutic equipment Blood pressure meter, etc



Our Advantage:

Rich experienceGood knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced EquipmentFull automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine etc advance production equipment ensure product quality
Quality AssuranceAdvance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast responseQuickly realize your customized ideas, and have a sample ready in short time
Low MOQDepends on product
Stable supply1~10 years supply period
Extensive rangeProviding complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacityOperation capacity 2KK monthly
Quality guaranteeRoHS compliant
ManagementISO 9001:2008, ISO 14001:2004
