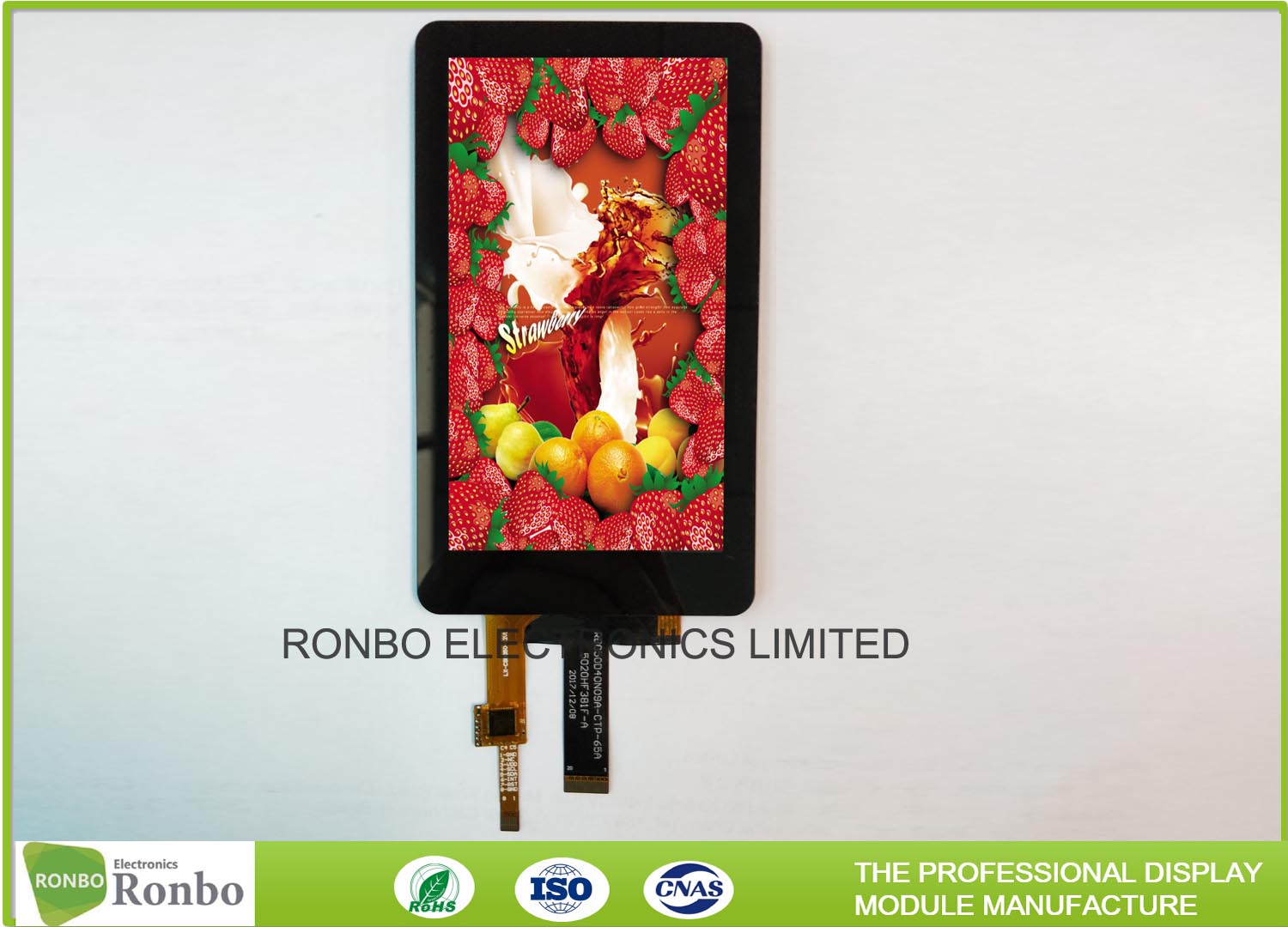

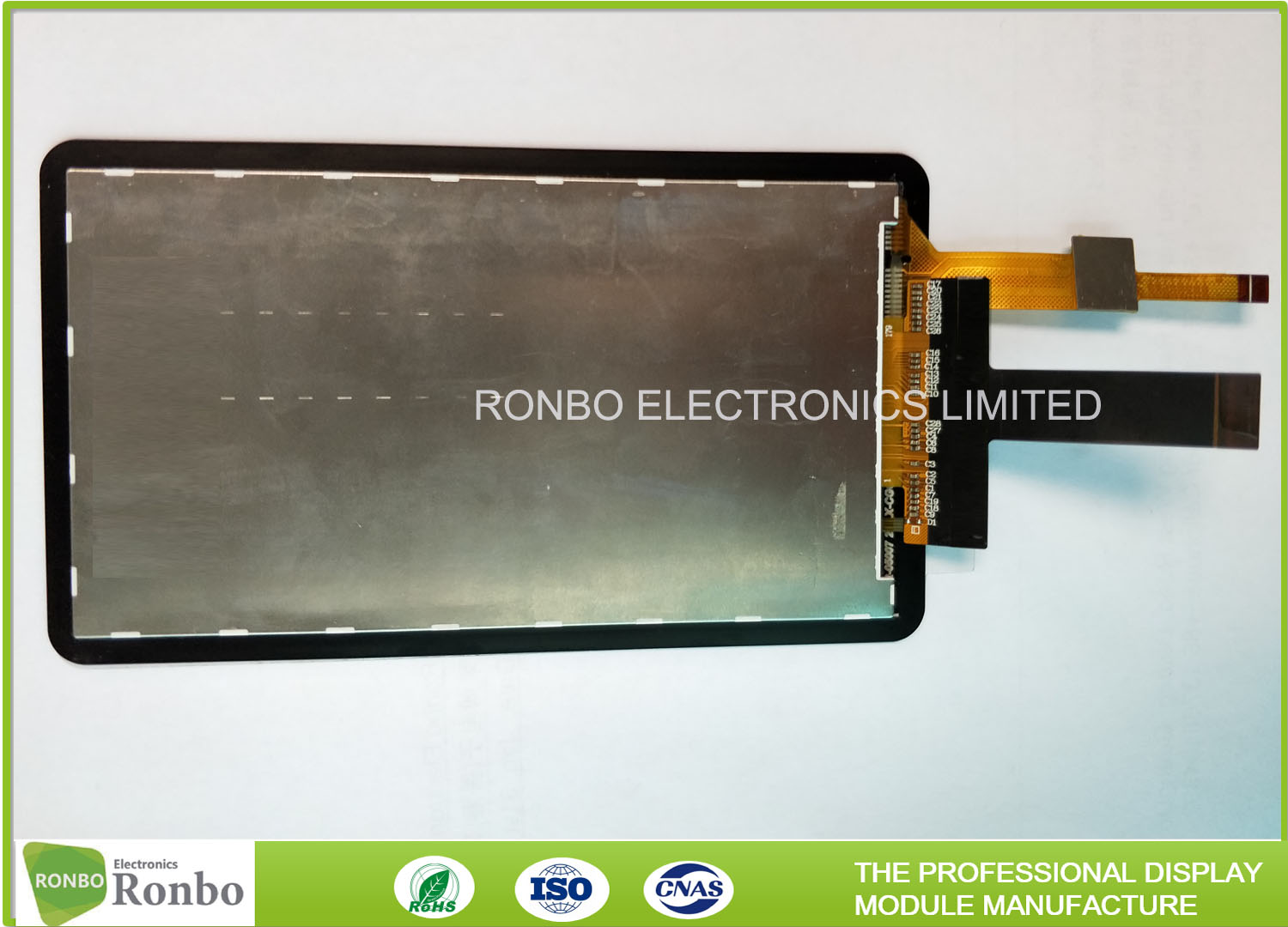

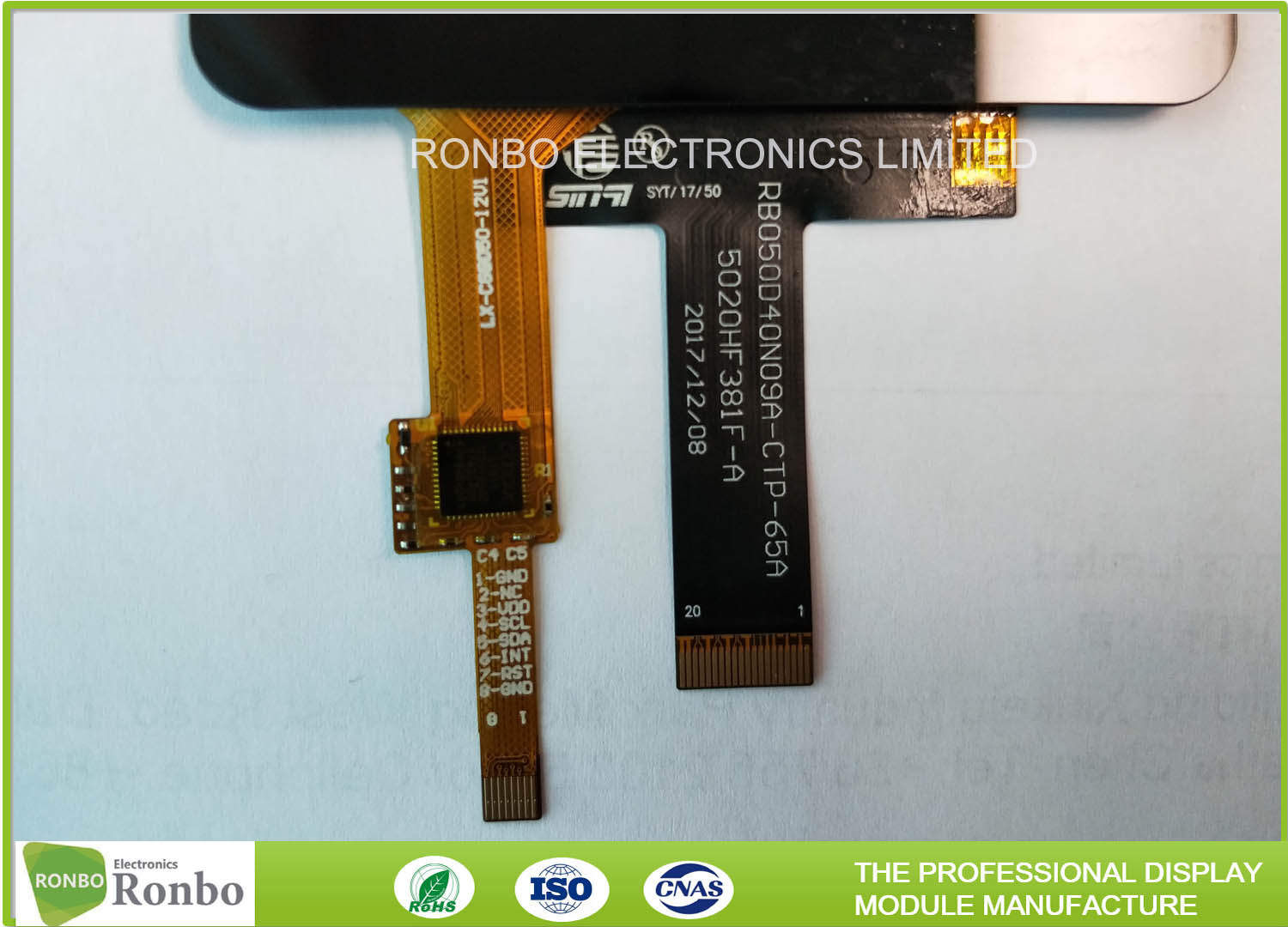

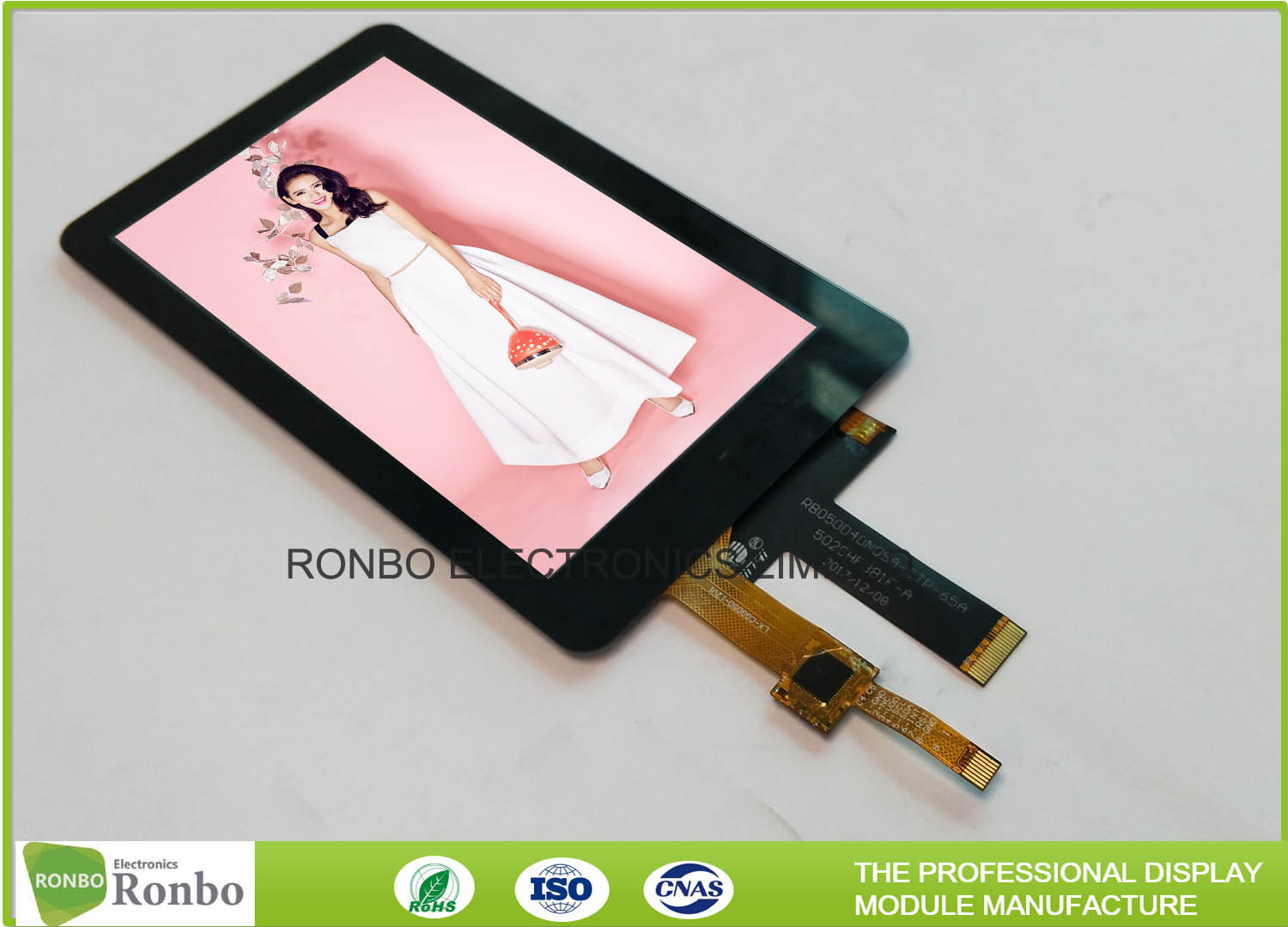

Customizable High Luminance 5.0 Inch IPS 480*854 Touch Screen LCD Display


Main Specification
Model NO.:

RB050D40N09A-GG65A

Screen Size:5.0”
Display typeIPS
Resolution:480*854
Viewing direction:ALL
Module size(W*H*T):76.1*131.2*3.98 (LCM CTP)
Active area (W*H):
61.63*109.65mm
Brightness:460cd/m²
Operating Temperature:
-20 ~  70ºC
Storage Temperature:-30 ~  80ºC
LCD SpecificationController:ILI9806E or equivalent
Backlight:

6S2P=12 WLED If=40mA, Vf =19.2V

Contrast
800

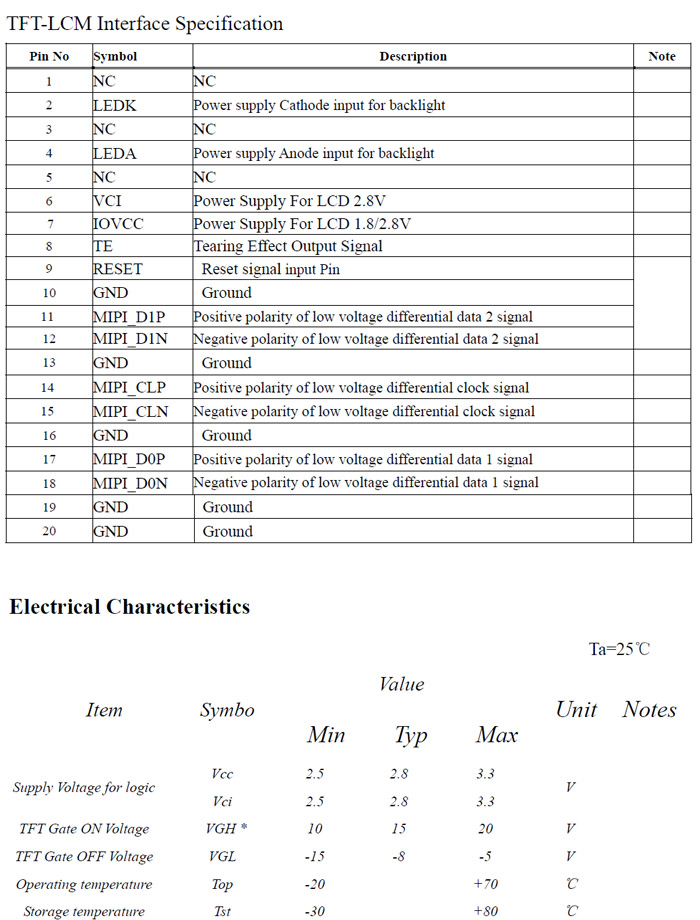

Interface:MIPI
Pin NO:20Pin
Pin pitch0.5mm
Connecting typeFPC Connector
CTP Specification
Touch typeMulti-touch capacitive touch panel
Structure:G G
Surface Treatment:Customized
Sensor/CG Thickness:1.1/0.7mm
Total Thickness:1.875mm (don’t including Double Tape)
Controller:
GT911 or equivalent
Touch Action Force:30~60g
Operating Voltage::2.8V~3.3V
Transmittance:≥86%
Surface Hardness:≥6H
Interface:IIC
Pin NO:8Pin
Pin pitch0.5mm
Connecting typeZIF Connector
Operating system support:Linux, Android, Windows

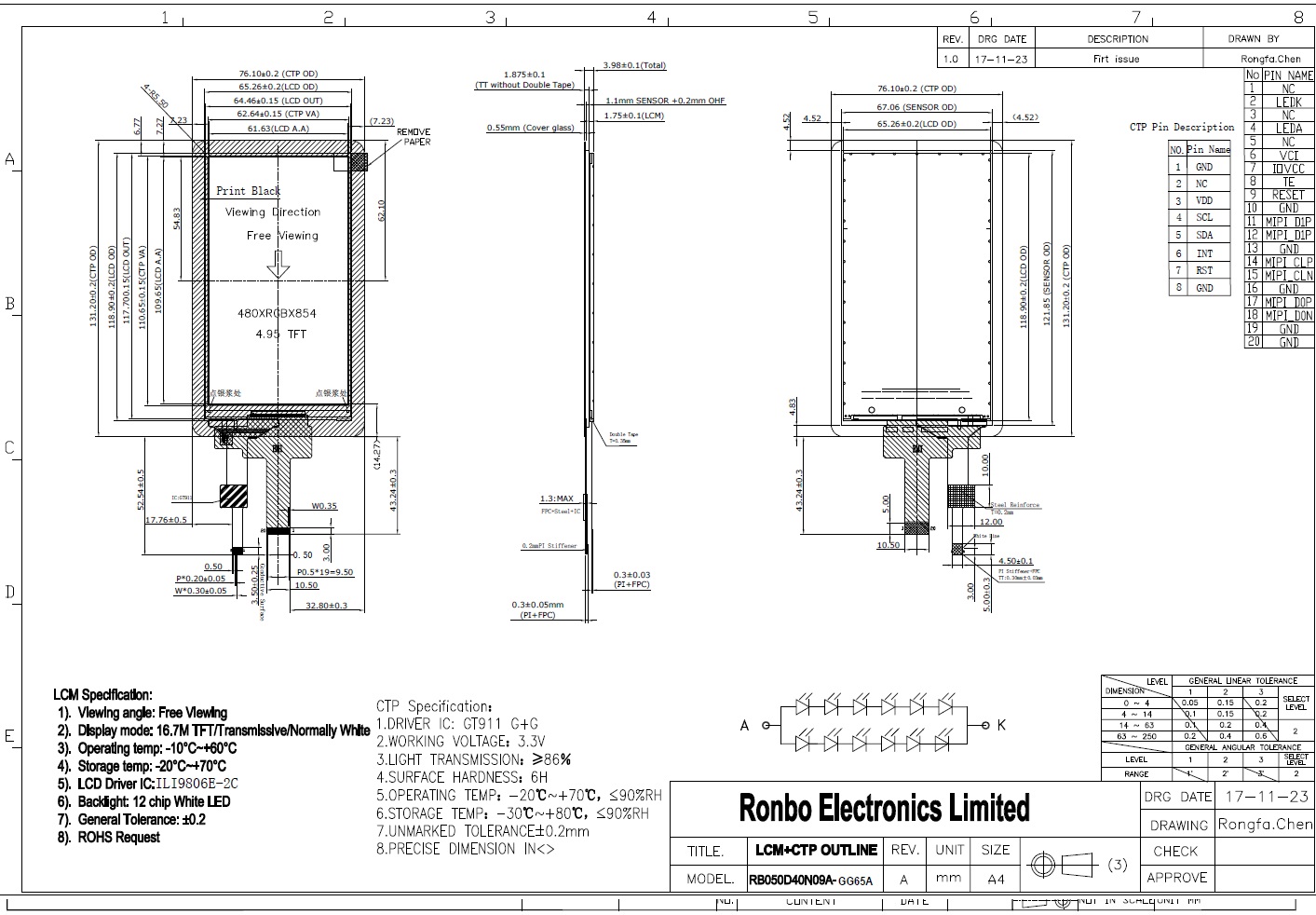

 Product Specification:

CTP structures explanation:

* P / G=PET Glass (cover lens is PET and touch sensor is glass).

* G / G=Glass Glass (cover lens is glass and touch sensor is glass).

* G / F / F=Glass Film Film (cover lens is glass and touch sensor is film film).

* C / G= Cover Glass, OD= Outside Dimension, VA= Viewing Area.



* It is a TFT LCD Display bonding with Capacitive Touch Screen.

* Backlight with different brightness is customized according to your request.

* It is Standard TFT LCD Module and Capacitive Touch Screen.

* It can be customized for LCD and Touch screen.

* Experienced Team for Your Custom Solution.

* RoHS compliant.





Custom Projected Capacitive Touch Screen:

  • Our capacitive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module.

  • we are also capable of doing the customized shape needed to suit for customer's mechanical design.

  • With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.

Custom Capacitive Touch Panel_1.jpg

          Lens’s Features

►Shape: Irregular and hole

►Color: Silk printing, Logo

►Glass brand: AGC, Corning, CSG, ETC

►Treatments: AG, AR, AF, Anti-explosion

►Thickness: 0.55mm, 0.7mm, 1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm

         Sensor Features

►Sensor material: Glass, Film, Film / Film

►Thickness:0.125mm,0.4mm,0.55mm,0.7mm,1.1mm

►FPC: Shape design optional

►IC: Focaltech, Goodix, Cypress, EETI

►Interface: IIC, USB, RS232, SPI

            Assembly



►Optical Bonding with OCA



►Double faced adhesive tape

Product Application:

Telecommunication DevicesTelephone, interphone, watch, tablet PC, radio, etc
Consumer ProductsCamera, DVD player, toy, Cell Phone, game player, etc
Technical EquipmentElevator controller, Industrial machine, etc
Office AutomationPrinter, scanner, attendance machine, fax machine, etc
Home AppliancesAir-condition display, refrigerator, electric cooker, video doorbell, etc
AutomobileGPS, video player, speedometer, audio broadcast, etc
IT ProductsCamera, handheld digital video, projector, media play, tablet PC, etc
Medical EquipmentUltrasound machine, therapeutic equipment Blood pressure meter, etc

 FAQ:

Q: What is the MOQ?

A: It depends on different products. Please keep in touch with sales to confirm the MOQ.



Q: What about the delivery time?

A: Ready-made Sample: within 1 week

    Custom Sample: 1~2 weeks

    Mass production: 4-6 weeks



Q: Does your product have any warranty?

A: Yes, we offer 12 months warranty for our products.



Q: What's your payment method?

A: For samples: payment in advance.

    For mass production: 30% deposit and 70% balance before shipment.



Q: What's your shipping method?

A: We provide comprehensive shipping methods.

For small quantity orders we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

    For large quantity orders we ship by buyer's cargo agent in China,

    we can also ship by Air transportation or sea transportation.



Q: Do you offer custom solution?

A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
